Proxy in VB.NET

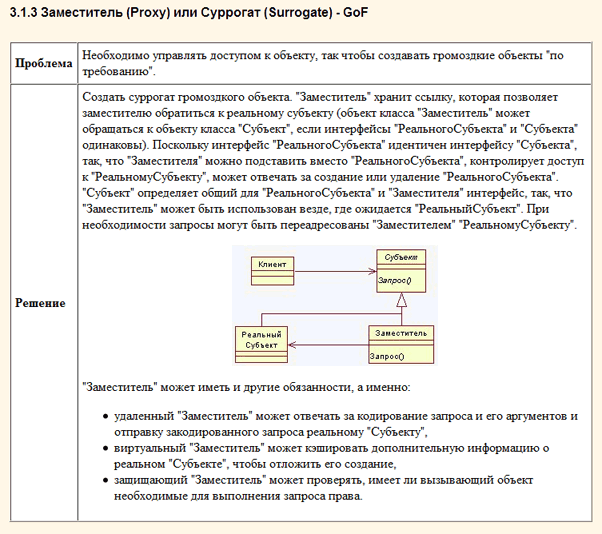

Provide a surrogate or placeholder for another object to control access to it. Proxy pattern provides a representative object (proxy) that controls access to another similar object.

Please download project with this source code from https://github.com/ViacheslavUKR/StandardDisignOopPattern

   1:      ' Proxy Design Pattern.

   2:      ' See description in //www.vb-net.com/ProgramTheory/Proxy.htm

   3:      Class MainApp

   4:          ' Entry point into console application.

   5:          Public Shared Sub Main()

   6:              ' Create proxy and request a service

   7:              Dim proxy As New Proxy()

   8:              proxy.Request()

   9:              ' Wait for user

  10:              Console.ReadKey()

  11:          End Sub

  12:      End Class

  13:      ' The 'Subject' abstract class

  14:      MustInherit Class Subject

  15:          Public MustOverride Sub Request()

  16:      End Class

  17:

  18:      ' The 'RealSubject' class

  19:      Class RealSubject

  20:          Inherits Subject

  21:          Public Overrides Sub Request()

  22:              Console.WriteLine("Called RealSubject.Request()")

  23:          End Sub

  24:      End Class

  25:

  26:      ' The 'Proxy' class

  27:      Class Proxy

  28:          Inherits Subject

  29:          Private _realSubject As RealSubject

  30:          Public Overrides Sub Request()

  31:              ' Use 'lazy initialization'

  32:              If _realSubject Is Nothing Then

  33:                  _realSubject = New RealSubject()

  34:              End If

  35:              _realSubject.Request()

  36:          End Sub

  37:      End Class
