Singleton in VB.NET

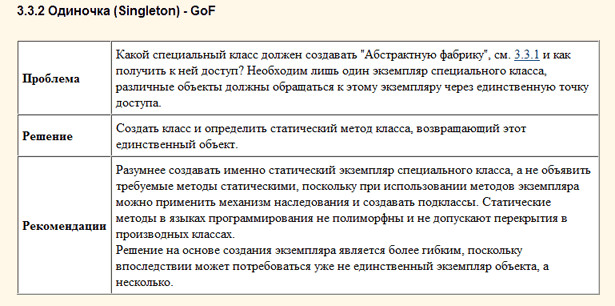

Ensure a class has only one instance and provide a global point of access to it.

Please download project with this source code from https://github.com/ViacheslavUKR/StandardDisignOopPattern

   1:  ' Singleton Design Pattern.

   2:  ' See description in //www.vb-net.com/ProgramTheory/Singleton.htm

   3:  Class MainApp

   4:      ' Entry point into console application.

   5:      Public Shared Sub Main()

   6:          ' Constructor is protected -- cannot use new

   7:          Dim s1 As Singleton = Singleton.Instance()

   8:          Dim s2 As Singleton = Singleton.Instance()

   9:          ' Test for same instance

  10:          If s1 Is s2 Then

  11:              Console.WriteLine("Objects are the same instance")

  12:          End If

  13:          ' Wait for user

  14:          Console.ReadKey()

  15:      End Sub

  16:  End Class

  17:

  18:  ' The 'Singleton' class

  19:  Class Singleton

  20:      Private Shared _instance As Singleton

  21:      ' Constructor is 'protected'

  22:      Protected Sub New()

  23:      End Sub

  24:

  25:      Public Shared Function Instance() As Singleton

  26:          ' Uses lazy initialization.

  27:          ' Note: this is not thread safe.

  28:          If _instance Is Nothing Then

  29:              _instance = New Singleton()

  30:          End If

  31:          Return _instance

  32:      End Function

  33:  End Class
