Interpreter in VB.NET
A way to include language elements in a program

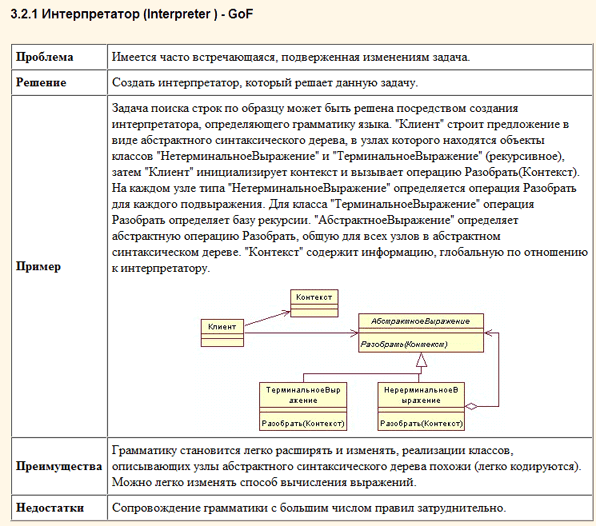

ReturnGiven a language, define a representation for its grammar along with an interpreter that uses the representation to interpret sentences in the language. Interpreter patterns, which using a defined grammer, provides the interpreter that processes parsed statements.
Please download project with this source code from https://github.com/ViacheslavUKR/StandardDisignOopPattern
1: ' Interpreter Design Pattern.
2: ' See description in //www.vb-net.com/ProgramTheory/Interpreter.htm
3: Class MainApp
4: ' Entry point into console application.
5: Public Shared Sub Main()
6: Dim context As New Context()
7: ' Usually a tree
8: Dim list As New ArrayList()
9: ' Populate 'abstract syntax tree'
10: list.Add(New TerminalExpression())
11: list.Add(New NonterminalExpression())
12: list.Add(New TerminalExpression())
13: list.Add(New TerminalExpression())
14: ' Interpret
15: For Each exp As AbstractExpression In list
16: exp.Interpret(context)
17: Next
18: ' Wait for user
19: Console.ReadKey()
20: End Sub
21: End Class
22:
23: ' The 'Context' class
24: Class Context
25: End Class
26:
27: ' The 'AbstractExpression' abstract class
28: MustInherit Class AbstractExpression
29: Public MustOverride Sub Interpret(context As Context)
30: End Class
31:
32: ' The 'TerminalExpression' class
33: Class TerminalExpression
34: Inherits AbstractExpression
35: Public Overrides Sub Interpret(context As Context)
36: Console.WriteLine("Called Terminal.Interpret()")
37: End Sub
38: End Class
39:
40: ' The 'NonterminalExpression' class
41: Class NonterminalExpression
42: Inherits AbstractExpression
43: Public Overrides Sub Interpret(context As Context)
44: Console.WriteLine("Called Nonterminal.Interpret()")
45: End Sub
46: End Class
