Brige in VB.NET
Separates an object’s interface from its implementation

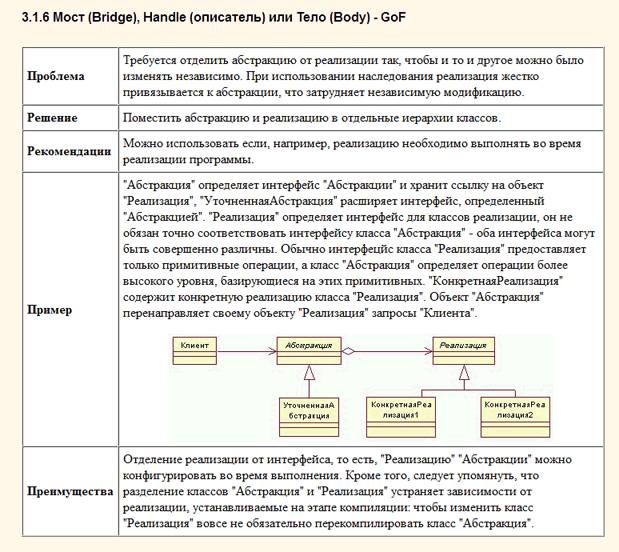

ReturnDecouple an abstraction from its implementation so that the two can vary independently. The implementation can evolve without changing clients which use the abstraction of the object.
Please download project with this source code from https://github.com/ViacheslavUKR/StandardDisignOopPattern
1: ' Bridge Design Pattern.
2: ' See description in //www.vb-net.com/ProgramTheory/Bridge.htm
3: Class MainApp
4: ' Entry point into console application.
5: Public Shared Sub Main()
6: Dim ab As Abstraction = New RefinedAbstraction()
7: ' Set implementation and call
8: ab.Implementor = New ConcreteImplementorA()
9: ab.Operation()
10: ' Change implemention and call
11: ab.Implementor = New ConcreteImplementorB()
12: ab.Operation()
13: ' Wait for user
14: Console.ReadKey()
15: End Sub
16: End Class
17:
18: ' The 'Abstraction' class
19: Class Abstraction
20: Protected _implementor As Implementor
21: ' Property
22: Public WriteOnly Property Implementor() As Implementor
23: Set(value As Implementor)
24: _implementor = value
25: End Set
26: End Property
27: Public Overridable Sub Operation()
28: _implementor.Operation()
29: End Sub
30: End Class
31: ' The 'Implementor' abstract class
32: MustInherit Class Implementor
33: Public MustOverride Sub Operation()
34: End Class
35:
36: ' The 'RefinedAbstraction' class
37: Class RefinedAbstraction
38: Inherits Abstraction
39: Public Overrides Sub Operation()
40: _implementor.Operation()
41: End Sub
42: End Class
43:
44: ' The 'ConcreteImplementorA' class
45: Class ConcreteImplementorA
46: Inherits Implementor
47: Public Overrides Sub Operation()
48: Console.WriteLine("ConcreteImplementorA Operation")
49: End Sub
50: End Class
51:
52: ' The 'ConcreteImplementorB' class
53: Class ConcreteImplementorB
54: Inherits Implementor
55: Public Overrides Sub Operation()
56: Console.WriteLine("ConcreteImplementorB Operation")
57: End Sub
58: End Class
