Template Method in VB.NET
Defer the exact steps of an algorithm to a subclass

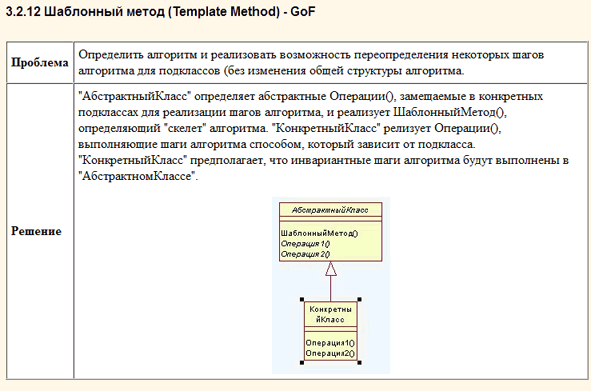

ReturnDefine the skeleton of an algorithm in an operation, deferring some steps to subclasses. Template Method lets subclasses redefine certain steps of an algorithm without changing the algorithm's structure. Template method provide a skeleton calling sequence of methods. One or more steps can be deferred to subclasses which implement these steps without changing the overall calling sequence.
Please download project with this source code from https://github.com/ViacheslavUKR/StandardDisignOopPattern
1: ' Template Method Design Pattern.
2: ' See description in //www.vb-net.com/ProgramTheory/TemplateMethod.htm
3: Class MainApp
4: ' Entry point into console application.
5: Public Shared Sub Main()
6: Dim aA As AbstractClass = New ConcreteClassA()
7: aA.TemplateMethod()
8: Dim aB As AbstractClass = New ConcreteClassB()
9: aB.TemplateMethod()
10: ' Wait for user
11: Console.ReadKey()
12: End Sub
13: End Class
14:
15: ' The 'AbstractClass' abstract class
16: MustInherit Class AbstractClass
17: Public MustOverride Sub PrimitiveOperation1()
18: Public MustOverride Sub PrimitiveOperation2()
19: ' The "Template method"
20: Public Sub TemplateMethod()
21: PrimitiveOperation1()
22: PrimitiveOperation2()
23: Console.WriteLine("")
24: End Sub
25: End Class
26:
27: ' A 'ConcreteClass' class
28: Class ConcreteClassA
29: Inherits AbstractClass
30: Public Overrides Sub PrimitiveOperation1()
31: Console.WriteLine("ConcreteClassA.PrimitiveOperation1()")
32: End Sub
33: Public Overrides Sub PrimitiveOperation2()
34: Console.WriteLine("ConcreteClassA.PrimitiveOperation2()")
35: End Sub
36: End Class
37:
38: ' A 'ConcreteClass' class
39: Class ConcreteClassB
40: Inherits AbstractClass
41: Public Overrides Sub PrimitiveOperation1()
42: Console.WriteLine("ConcreteClassB.PrimitiveOperation1()")
43: End Sub
44: Public Overrides Sub PrimitiveOperation2()
45: Console.WriteLine("ConcreteClassB.PrimitiveOperation2()")
46: End Sub
47: End Class
