State in VB.NET
Alter an object's behavior when its state changes

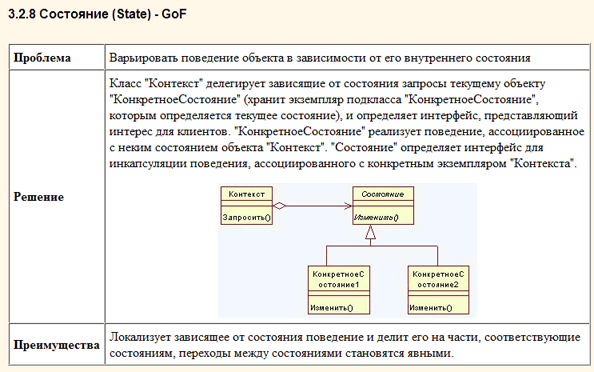

ReturnAllow an object to alter its behavior when its internal state changes. The object will appear to change its class. State pattern allows an object to behave differently depending on its internal state. The difference in behavior is delegated to objects that represent this state.
Please download project with this source code from https://github.com/ViacheslavUKR/StandardDisignOopPattern
1: ' State Design Pattern.
2: ' See description in //www.vb-net.com/ProgramTheory/State.htm
3: Class MainApp
4: ' Entry point into console application.
5: Public Shared Sub Main()
6: ' Setup context in a state
7: Dim c As New Context(New ConcreteStateA())
8: ' Issue requests, which toggles state
9: c.Request()
10: c.Request()
11: c.Request()
12: c.Request()
13: ' Wait for user
14: Console.ReadKey()
15: End Sub
16: End Class
17:
18: ' The 'State' abstract class
19: MustInherit Class State
20: Public MustOverride Sub Handle(context As Context)
21: End Class
22:
23: ' A 'ConcreteState' class
24: Class ConcreteStateA
25: Inherits State
26: Public Overrides Sub Handle(context As Context)
27: context.State = New ConcreteStateB()
28: End Sub
29: End Class
30:
31: ' A 'ConcreteState' class
32: Class ConcreteStateB
33: Inherits State
34: Public Overrides Sub Handle(context As Context)
35: context.State = New ConcreteStateA()
36: End Sub
37: End Class
38:
39: ' The 'Context' class
40: Class Context
41: Private _state As State
42: ' Constructor
43: Public Sub New(state As State)
44: Me.State = state
45: End Sub
46: ' Gets or sets the state
47: Public Property State() As State
48: Get
49: Return _state
50: End Get
51: Set(value As State)
52: _state = value
53: Console.WriteLine("State: " + _state.[GetType]().Name)
54: End Set
55: End Property
56: Public Sub Request()
57: _state.Handle(Me)
58: End Sub
59: End Class
