Observer in VB.NET
A way of notifying change to a number of classes

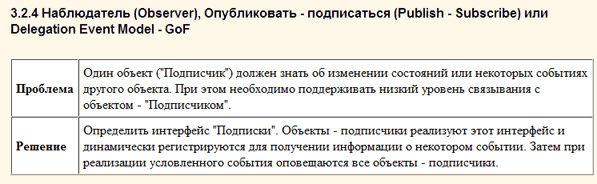

ReturnDefine a one-to-many dependency between objects so that when one object changes state, all its dependents are notified and updated automatically. Observer pattern with registered objects are notified of and updated with a state change.
Please download project with this source code from https://github.com/ViacheslavUKR/StandardDisignOopPattern
1: ' Observer Design Pattern.
2: ' See description in //www.vb-net.com/ProgramTheory/Observer.htm
3: Class MainApp
4: ' Entry point into console application.
5: Public Shared Sub Main()
6: ' Configure Observer pattern
7: Dim s As New ConcreteSubject()
8: s.Attach(New ConcreteObserver(s, "X"))
9: s.Attach(New ConcreteObserver(s, "Y"))
10: s.Attach(New ConcreteObserver(s, "Z"))
11: ' Change subject and notify observers
12: s.SubjectState = "ABC"
13: s.Notify()
14: ' Wait for user
15: Console.ReadKey()
16: End Sub
17: End Class
18:
19: ' The 'Subject' abstract class
20: MustInherit Class Subject
21: Private _observers As New List(Of Observer)()
22: Public Sub Attach(observer As Observer)
23: _observers.Add(observer)
24: End Sub
25: Public Sub Detach(observer As Observer)
26: _observers.Remove(observer)
27: End Sub
28: Public Sub Notify()
29: For Each o As Observer In _observers
30: o.Update()
31: Next
32: End Sub
33: End Class
34:
35: ' The 'ConcreteSubject' class
36: Class ConcreteSubject
37: Inherits Subject
38: Private _subjectState As String
39: ' Gets or sets subject state
40: Public Property SubjectState() As String
41: Get
42: Return _subjectState
43: End Get
44: Set(value As String)
45: _subjectState = value
46: End Set
47: End Property
48: End Class
49:
50: ' The 'Observer' abstract class
51: MustInherit Class Observer
52: Public MustOverride Sub Update()
53: End Class
54:
55: ' The 'ConcreteObserver' class
56: Class ConcreteObserver
57: Inherits Observer
58: Private _name As String
59: Private _observerState As String
60: Private _subject As ConcreteSubject
61: ' Constructor
62: Public Sub New(subject As ConcreteSubject, name As String)
63: Me._subject = subject
64: Me._name = name
65: End Sub
66: Public Overrides Sub Update()
67: _observerState = _subject.SubjectState
68: Console.WriteLine("Observer {0}'s new state is {1}", _name, _observerState)
69: End Sub
70: ' Gets or sets subject
71: Public Property Subject() As ConcreteSubject
72: Get
73: Return _subject
74: End Get
75: Set(value As ConcreteSubject)
76: _subject = value
77: End Set
78: End Property
79: End Class
