Prototype in VB.NET
A fully initialized instance to be copied or cloned

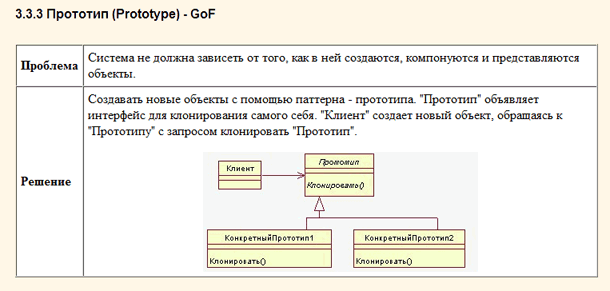

ReturnSpecify the kind of objects to create using a prototypical instance, and create new objects by copying this prototype.
Please download project with this source code from https://github.com/ViacheslavUKR/StandardDisignOopPattern
1: ' Prototype Design Pattern.
2: ' See description in //www.vb-net.com/ProgramTheory/Prototype.htm
3: Class MainApp
4: ' Entry point into console application.
5: Public Shared Sub Main()
6: ' Create two instances and clone each
7: Dim p1 As New ConcretePrototype1("I")
8: Dim c1 As ConcretePrototype1 = DirectCast(p1.Clone(), ConcretePrototype1)
9: Console.WriteLine("Cloned: {0}", c1.Id)
10: Dim p2 As New ConcretePrototype2("II")
11: Dim c2 As ConcretePrototype2 = DirectCast(p2.Clone(), ConcretePrototype2)
12: Console.WriteLine("Cloned: {0}", c2.Id)
13: ' Wait for user
14: Console.ReadKey()
15: End Sub
16: End Class
17:
18: ' The 'Prototype' abstract class
19: MustInherit Class Prototype
20: Private _id As String
21: ' Constructor
22: Public Sub New(id As String)
23: Me._id = id
24: End Sub
25: ' Gets id
26: Public ReadOnly Property Id() As String
27: Get
28: Return _id
29: End Get
30: End Property
31: Public MustOverride Function Clone() As Prototype
32: End Class
33:
34: ' A 'ConcretePrototype' class
35: Class ConcretePrototype1
36: Inherits Prototype
37: ' Constructor
38: Public Sub New(id As String)
39: MyBase.New(id)
40: End Sub
41: ' Returns a shallow copy
42: Public Overrides Function Clone() As Prototype
43: Return DirectCast(Me.MemberwiseClone(), Prototype)
44: End Function
45: End Class
46:
47: ' A 'ConcretePrototype' class
48: Class ConcretePrototype2
49: Inherits Prototype
50: ' Constructor
51: Public Sub New(id As String)
52: MyBase.New(id)
53: End Sub
54: ' Returns a shallow copy
55: Public Overrides Function Clone() As Prototype
56: Return DirectCast(Me.MemberwiseClone(), Prototype)
57: End Function
58: End Class
