How to create Slideshow and VideoConverter by FFmpeg MediaToolkit.

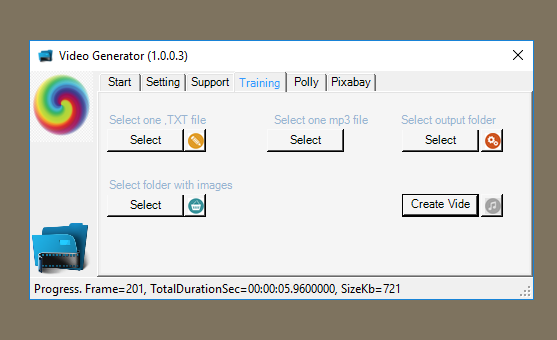

This is one tab on one of the my interesting program for creating slide show. In this page I describe one tabs of this program - tab fo training for processing one simple slideshow, without Polly and Pixabay. However this program can resize photo before processing, insert text (like lyrics or subtitles) and insert music. By this program you can create beautiful video from your travel, insert description for each photo and insert music to your video.

This program working on .NET interface to compiled FFMpeg to Windows - https://github.com/AydinAdn/MediaToolkit. Program working carefully, with catching error, without freezing GUI (all durable operation going in background), scale photo images to HD video, store sequence video number in registry and has many various modes to tune working. This is common view of tab I describe in this page.

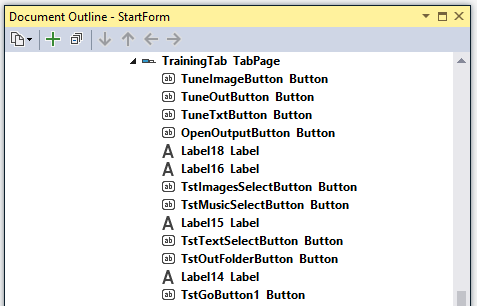

And this is name of form variaables in this tab.



And this is a code of my Slideshow creator.


   1:  Imports System.Collections.ObjectModel
   2:  Imports System.ComponentModel
   3:  Imports System.Drawing.Drawing2D
   4:  Imports System.Drawing.Imaging
   5:  Imports MediaToolkit
   6:
   7:  Public Class StartForm
   8:
   9:
  10:      Private Sub StartForm_Load(sender As Object, e As EventArgs) Handles Me.Load
  11:          Application.DoEvents()
  12:          GoNum = CInt(RegistryCreateOrRead(10))
  13:          Dim Assembly As System.Reflection.Assembly = System.Reflection.Assembly.GetExecutingAssembly()
  14:          Dim fvi As FileVersionInfo = FileVersionInfo.GetVersionInfo(Assembly.Location)
  15:          Dim Version = fvi.FileVersion
  16:          Me.Text &= " (" & Version & ")"
  17:          TabControl1.DrawMode = TabDrawMode.OwnerDrawFixed
  18:          TabControl1.SelectedIndex = 1
  19:          TabControl1.SelectedIndex = 0
  20:          Step1Panel.Visible = True
  21:          Step2Panel.Visible = False
  22:      End Sub
  23:
  24:      Private Sub TabControl1_Selected(sender As Object, e As TabControlEventArgs) Handles TabControl1.Selected
  25:          CurrenPageIndex = e.TabPageIndex
  26:          TabControl1.Refresh()
  27:
  28:          If e.TabPage.Name = "StartTab" Then
  ...
  41:          ElseIf e.TabPage.Name = "SettingTab" Then
  ...
  52:          ElseIf e.TabPage.Name = "SupportTab" Then
  ...
  58:          ElseIf e.TabPage.Name = "TrainingTab" Then
  59:
  60:          ElseIf e.TabPage.Name = "PollyTab" Then
  ...
  66:          ElseIf e.TabPage.Name = "PixabayTab" Then
  ...
  75:          End If
  76:      End Sub
  77:
  78:
  79:  #Region "Master"
  80:
  81:      Dim CurrentStep As Integer
  82:      Dim CurrenPageIndex As Integer
  83:      Private Overloads Sub tabControl1_DrawItem(ByVal sender As Object, ByVal e As DrawItemEventArgs) Handles TabControl1.DrawItem
  84:          Try
  85:              Dim br As Brush = New SolidBrush(System.Drawing.SystemColors.Highlight)
  86:              Dim sz As SizeF
  87:              If e.Index = CurrenPageIndex Then
  88:                  sz = e.Graphics.MeasureString(TabControl1.TabPages(e.Index).Text, e.Font)
  89:                  e.Graphics.DrawString(TabControl1.TabPages(e.Index).Text, e.Font, br, e.Bounds.Left + (e.Bounds.Width - sz.Width) / 2, e.Bounds.Top + (e.Bounds.Height - sz.Height) / 2 + 1)
  90:              Else
  91:                  sz = e.Graphics.MeasureString(TabControl1.TabPages(e.Index).Text, e.Font)
  92:                  e.Graphics.DrawString(TabControl1.TabPages(e.Index).Text, e.Font, Brushes.Black, e.Bounds.Left + (e.Bounds.Width - sz.Width) / 2, e.Bounds.Top + (e.Bounds.Height - sz.Height) / 2 + 1)
  93:              End If
  94:          Catch ex As Exception
  95:
  96:          End Try
  97:      End Sub
  ...
 719:  #Region "Test Form"
 720:      Dim ffmpeg As MediaToolkit.Engine
 721:      Dim WithEvents BG1 As BackgroundWorker
 722:      Dim WithEvents BG2 As BackgroundWorker
 723:      Dim CMD As String
 724:      Dim GoNum As Integer
 725:      Dim IsProgress As Boolean = False
 726:      Private Sub Button1_Click(sender As Object, e As EventArgs) Handles TstGoButton1.Click
 727:          Try
 728:
 729:              BG2 = New BackgroundWorker
 730:              'CMD = " -f concat -safe 0 -i ""E:\Tmp\IMG\concat.txt"" " &
 731:              '        "-i ""E:\Angular\YTB076.mp3"" " &
 732:              '        "-c:v libx264 -vcodec libx264 -c:a aac -pix_fmt yuv420p -framerate 30 -shortest " &
 733:              '        "-y E:\Angular\out.mp4"
 734:
 735:              GoNum += 1
 736:              RegistryUpdate(GoNum)
 737:
 738:              Dim TXT As String() = System.IO.File.ReadAllLines(CaptionFile)
 739:              Dim Prm2 = New With {.ImageFiles = ImageFiles, .TXT = TXT}
 740:              BG2.RunWorkerAsync(Prm2)
 741:
 742:          Catch ex As Exception
 743:              MsgBox(ex.Message)
 744:          End Try
 745:
 746:      End Sub
 747:
 748:      '?????? ?????? ?? ???????????? ????????????
 749:      Private Sub BG1_DoWork(ByVal sender As System.Object, ByVal e As System.ComponentModel.DoWorkEventArgs) Handles BG1.DoWork
 750:          Using ffmpeg = New MediaToolkit.Engine
 751:              AddHandler ffmpeg.ConversionCompleteEvent, AddressOf ConversionCompleteEvent
 752:              AddHandler ffmpeg.ConvertProgressEvent, AddressOf ConvertProgressEvent
 753:              ffmpeg.CustomCommand(e.Argument)
 754:          End Using
 755:      End Sub
 756:
 757:      '?????????? ?????????? ?? ???????????????? ????????????

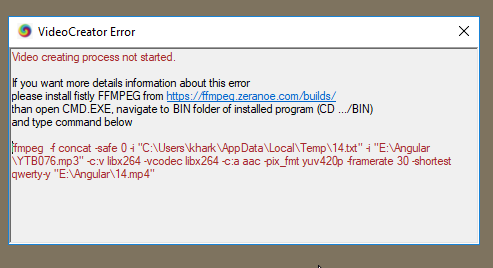

 758:      Private Sub BG1_RunWorkerCompleted(ByVal sender As System.Object, ByVal e As System.ComponentModel.RunWorkerCompletedEventArgs) Handles BG1.RunWorkerCompleted
 759:          If Not IsProgress Then
 760:              Dim X As New ErrForm
 761:              X.RedText.Add({0, 36})
 762:              X.RedText.Add({260, 500})
 763:              X.ErrorMessage = "Video creating process not started." & vbCrLf & vbCrLf &
 764:                  "If you want more details information about this error" & vbCrLf &
 765:                  "please install fistly FFMPEG from https://ffmpeg.zeranoe.com/builds/" & vbCrLf &
 766:                  "than open CMD.EXE, navigate to BIN folder of installed program (CD .../BIN)" & vbCrLf &
 767:                  "and type command below" & vbCrLf & vbCrLf &
 768:                  "ffmpeg " & CMD
 769:              X.ShowDialog()
 770:          Else
 771:              For Each One In ImageFiles
 772:                  My.Computer.FileSystem.DeleteFile(One.ToLower.Replace(".jpg", "_x.jpg"))
 773:              Next
 774:              OpenOutputButton.Enabled = True
 775:          End If
 776:          IsProgress = False
 777:      End Sub
 778:
 779:      Function ConversionCompleteEvent(sender As Object, e As MediaToolkit.ConversionCompleteEventArgs)
 780:          If Me.InvokeRequired Then
 781:              StartForm_Instance.BeginInvoke(Sub()
 782:                                                 StatusLabel1.Text = "Complete.  Frame=" & e.Frame & " ,ProcessedDuration=" & e.ProcessedDuration.ToString & ", SizeKb=" & e.SizeKb
 783:                                                 StatusStrip1.Refresh()
 784:                                                 IsProgress = True
 785:                                             End Sub)
 786:          End If
 787:
 788:      End Function
 789:
 790:      Function ConvertProgressEvent(sender As Object, e As MediaToolkit.ConvertProgressEventArgs)
 791:          If Me.InvokeRequired Then
 792:              StartForm_Instance.BeginInvoke(Sub()
 793:                                                 StatusLabel1.Text = "Progress. Frame=" & e.Frame & ", TotalDurationSec=" & e.ProcessedDuration.ToString & ", SizeKb=" & e.SizeKb
 794:                                                 StatusStrip1.Refresh()
 795:                                                 IsProgress = True
 796:                                             End Sub)
 797:
 798:          End If
 799:      End Function
 800:
 801:
 802:      Public Delegate Sub UpdateLabelHandler(sender As Object, name As String)
 803:      Private Sub UpdateProgressLabel(sender As Object, value As String)
 804:          sender.txt = value
 805:      End Sub
 806:
 807:      '?????? ?????? ?? ???????????? ????????????
 808:      Private Sub BG2_DoWork(ByVal sender As System.Object, ByVal e As System.ComponentModel.DoWorkEventArgs) Handles BG2.DoWork
 809:          Try
 810:              Dim ImageNum As Integer = 0
 811:              Using FNT As Font = New Font("Arial", FontSize)
 812:                  Using BR As SolidBrush = New SolidBrush(FontColor)
 813:                      For Each One As String In e.Argument.ImageFiles
 814:                          If One.ToLower.Contains(".jpg") Then
 815:                              Dim BM As Bitmap = TryCast(Image.FromFile(One), Bitmap)
 816:                              Dim SourceH As Integer = BM.Height
 817:                              Dim SourceW As Integer = BM.Width
 818:                              Dim SourceRatio As Single = SourceW / SourceH
 819:                              Dim DivInH As Single = SourceH / MaxHeigth
 820:                              Dim DivInW As Single = SourceW / MaxWidth
 821:                              Dim NewBitmap As Bitmap
 822:                              If DivInW > DivInH Then
 823:                                  NewBitmap = ResizeBitmap(BM, MaxWidth, SourceH / SourceRatio)
 824:                              Else
 825:                                  NewBitmap = ResizeBitmap(BM, SourceW / SourceRatio, MaxHeigth)
 826:                              End If
 827:                              Using GR As Graphics = Graphics.FromImage(NewBitmap)
 828:                                  'GR.DrawString(ImageNum.ToString, FNT, New SolidBrush(FontColor), New PointF(LeftGap / 2, TopGap / 2))
 829:                                  For RowNum As Integer = 0 To RowPerSlide - 1
 830:                                      'Debug.Print(FNT.Size)
 831:                                      GR.DrawString(GetNextLine(e.Argument.TXT, ImageNum, RowNum), FNT, New SolidBrush(FontColor), GetNewPointF(RowNum))
 832:                                  Next
 833:                              End Using
 834:                              NewBitmap.Save(One.ToLower.Replace(".jpg", "_x.jpg"))
 835:                              StartForm_Instance.BeginInvoke(Sub()
 836:                                                                 StatusLabel1.Text = One
 837:                                                                 StatusStrip1.Refresh()
 838:                                                             End Sub)
 839:                          End If
 840:                          ImageNum += 1
 841:                      Next
 842:                  End Using
 843:              End Using
 844:          Catch ex As Exception
 845:              StartForm_Instance.BeginInvoke(Sub()
 846:                                                 Dim X As New ErrForm
 847:                                                 X.ErrorMessage = ex.Message
 848:                                                 X.ShowDialog()
 849:                                             End Sub)
 850:          End Try
 851:
 852:      End Sub
 853:
 854:      Public Function ResizeBitmap(ByVal bmp As Bitmap, ByVal width As Integer, ByVal height As Integer) As Bitmap
 855:          Dim result As Bitmap = New Bitmap(width, height)
 856:          Using g As Graphics = Graphics.FromImage(result)
 857:              g.DrawImage(bmp, 0, 0, width, height)
 858:          End Using
 859:          Return result
 860:      End Function
 861:
  ...
 881:      Function GetNextLine(TXT As String(), ImageNum As Integer, RowNum As Integer) As String
 882:          If RowNum + ImageNum * RowPerSlide < TXT.Length Then
 883:              'Debug.WriteLine("(" & RowNum + ImageNum * RowPerSlide & ") " & TXT(RowNum + ImageNum * RowPerSlide))
 884:              Return (TXT(RowNum + ImageNum * RowPerSlide))
 885:          Else
 886:              Return ""
 887:          End If
 888:      End Function
 889:
 890:      Function GetNewPointF(RowNum As Integer) As PointF
 891:          If TopGap + RowNum * (FontSize + FontLineSpacing) > MaxHeigth Then
 892:              StartForm_Instance.BeginInvoke(Sub()
 893:                                                 Dim X As New ErrForm
 894:                                                 X.ErrorMessage = "Text line truncated because " & vbCrLf & "MaxHeigth=" & MaxHeigth & "RowPerSlide=" & RowPerSlide & vbCrLf & "caption line try to place outside of image Y-dimension, in pos=" & TopGap + RowNum * (FontSize + FontLineSpacing)
 895:                                                 X.ShowDialog()
 896:                                             End Sub)
 897:          Else
 898:              Return New PointF(LeftGap, TopGap + RowNum * (FontSize + FontLineSpacing))
 899:          End If
 900:
 901:      End Function
 902:
 903:      Private Sub BG2_RunWorkerCompleted(ByVal sender As System.Object, ByVal e As System.ComponentModel.RunWorkerCompletedEventArgs) Handles BG2.RunWorkerCompleted
 904:          StatusLabel1.Text = "Done."
 905:          StatusStrip1.Refresh()
 906:          '
 907:
 908:          Dim DemuxerFile As String = IO.Path.Combine(System.IO.Path.GetTempPath, GoNum & ".txt")
 909:          CreateDemuxer(DemuxerFile)
 910:
 911:          BG1 = New BackgroundWorker
 912:
 913:          CMD = String.Format(" -f concat -safe 0 -i ""{0}"" " &
 914:                  "-i ""{1}"" " &
 915:                  "-c:v libx264 -vcodec libx264 -c:a aac -pix_fmt yuv420p -framerate {3} {4} {5}" &
 916:                  "-y ""{2}"" ", DemuxerFile, MusicFile, IO.Path.Combine(OutputFolderPath, GoNum & ".mp4"), Framerate, Shortest, AnyOut)
 917:          IsProgress = False
 918:          BG1.RunWorkerAsync(CMD)
 919:      End Sub
 920:
 921:
 922:      Dim CaptionFile As String
 923:      Private Sub TstTextSelectButton_Click(sender As Object, e As EventArgs) Handles TstTextSelectButton.Click
 924:          Dim FB7 = New System.Windows.Forms.OpenFileDialog()
 925:          FB7.Title = "Select txt file"
 926:          FB7.DefaultExt = "txt"
 927:          FB7.Filter = "txt files (*.txt)|*.txt|All files (*.*)|*.*"
 928:          FB7.FilterIndex = 1
 929:          FB7.CheckFileExists = True
 930:          FB7.CheckPathExists = True
 931:          Dim Res3 = FB7.ShowDialog
 932:          If Res3 = DialogResult.OK Then
 933:              CaptionFile = FB7.FileName
 934:              Label14.ForeColor = SystemColors.ActiveCaption
 935:              CheckTstReady()
 936:          End If
 937:      End Sub
 938:
 939:      Dim MusicFile As String
 940:      Private Sub TstMusicSelectButton_Click(sender As Object, e As EventArgs) Handles TstMusicSelectButton.Click
 941:          Dim FB6 = New System.Windows.Forms.OpenFileDialog()
 942:          FB6.Title = "Select music file"
 943:          FB6.DefaultExt = "mp3"
 944:          FB6.Filter = "mp3 files (*.mp3)|*.mp3|All files (*.*)|*.*"
 945:          FB6.FilterIndex = 1
 946:          FB6.CheckFileExists = True
 947:          FB6.CheckPathExists = True
 948:          Dim Res3 = FB6.ShowDialog
 949:          If Res3 = DialogResult.OK Then
 950:              MusicFile = FB6.FileName
 951:              Label15.ForeColor = SystemColors.ActiveCaption
 952:              CheckTstReady()
 953:          End If
 954:      End Sub
 955:
 956:      Private Sub TstImagesSelectButton_Click(sender As Object, e As EventArgs) Handles TstImagesSelectButton.Click
 957:          Dim FB5 = New System.Windows.Forms.FolderBrowserDialog()
 958:          FB5.Description = "Select images folder"
 959:          Dim Res3 As DialogResult = FB5.ShowDialog
 960:          If Res3 = DialogResult.OK Then
 961:              ImagesFolderPath = FB5.SelectedPath
 962:              ImageFiles = My.Computer.FileSystem.GetFiles(ImagesFolderPath)
 963:              Label16.ForeColor = SystemColors.ActiveCaption
 964:              CheckTstReady()
 965:          End If
 966:      End Sub
 967:
 968:      Dim OutputFolderPath As String
 969:      Private Sub TstOutFolderButton_Click(sender As Object, e As EventArgs) Handles TstOutFolderButton.Click
 970:          Dim FB4 = New System.Windows.Forms.FolderBrowserDialog()
 971:          FB4.Description = "Select output folder"
 972:          Dim Res3 As DialogResult = FB4.ShowDialog
 973:          If Res3 = DialogResult.OK Then
 974:              OutputFolderPath = FB4.SelectedPath
 975:              Label18.ForeColor = SystemColors.ActiveCaption
 976:              CheckTstReady()
 977:          End If
 978:      End Sub
 979:
 980:      Sub CheckTstReady()
 981:          If Label14.ForeColor = SystemColors.ActiveCaption And
 982:                   Label15.ForeColor = SystemColors.ActiveCaption And
 983:                   Label16.ForeColor = SystemColors.ActiveCaption And
 984:                    Label18.ForeColor = SystemColors.ActiveCaption Then
 985:              TstGoButton1.Enabled = True
 986:          End If
 987:      End Sub
 988:
 989:      Sub CreateDemuxer(DemuxerFile As String)
 990:          Dim Str1 As New Text.StringBuilder
 991:          For Each One As String In ImageFiles
 992:              If One.ToLower.Contains(".jpg") Then
 993:                  Str1.AppendLine("file " & "'" & One.ToLower.Replace(".jpg", "_x.jpg") & "'")
 994:                  Str1.AppendLine("duration " & Duration.ToString & ".0")
 995:              End If
 996:          Next
 997:          Dim utf8WithoutBom As New System.Text.UTF8Encoding(False)
 998:          My.Computer.FileSystem.WriteAllText(DemuxerFile, Str1.ToString, False, utf8WithoutBom)
 999:
1000:      End Sub
1001:  #End Region
1002:
1003:  #Region "Registry"
1004:
1005:      Dim SubKeyName As String = "VideoCreator2"
1006:      Dim ValueName As String = "Num"
1007:      Function RegistryCreateOrRead(SetNewValue As String) As String
1008:          Using LogonKey As Microsoft.Win32.RegistryKey = Microsoft.Win32.Registry.CurrentUser.OpenSubKey("SOFTWARE\" & SubKeyName, True)
1009:              If LogonKey Is Nothing Then
1010:                  Using SOFTWARE As Microsoft.Win32.RegistryKey = Microsoft.Win32.Registry.CurrentUser.OpenSubKey("SOFTWARE", True)
1011:                      Using MyKey As Microsoft.Win32.RegistryKey = SOFTWARE.CreateSubKey(SubKeyName)
1012:                          MyKey.SetValue(ValueName, SetNewValue)
1013:                      End Using
1014:                  End Using
1015:              Else
1016:                  Return LogonKey.GetValue(ValueName)
1017:              End If
1018:          End Using
1019:      End Function
1020:
1021:      Sub RegistryUpdate(SetNewValue As String)
1022:          Using LogonKey As Microsoft.Win32.RegistryKey = Microsoft.Win32.Registry.CurrentUser.OpenSubKey("SOFTWARE\" & SubKeyName, True)
1023:              If LogonKey Is Nothing Then
1024:                  Using SOFTWARE As Microsoft.Win32.RegistryKey = Microsoft.Win32.Registry.CurrentUser.OpenSubKey("SOFTWARE", True)
1025:                      Using MyKey As Microsoft.Win32.RegistryKey = SOFTWARE.CreateSubKey(SubKeyName)
1026:                          MyKey.SetValue(ValueName, SetNewValue)
1027:                      End Using
1028:                  End Using
1029:              Else
1030:                  Using MyKey As Microsoft.Win32.RegistryKey = Microsoft.Win32.Registry.CurrentUser.OpenSubKey("SOFTWARE\" & SubKeyName, True)
1031:                      MyKey.SetValue(ValueName, SetNewValue)
1032:                  End Using
1033:              End If
1034:          End Using
1035:      End Sub
1036:  #End Region
1037:
1038:      Private Sub TuneTxtButton_Click(sender As Object, e As EventArgs) Handles TuneTxtButton.Click
1039:          Dim X As New TuneTxtForm
1040:          X.ShowDialog()
1041:      End Sub
1042:
1043:      Public Framerate As Integer = 30
1044:      Public Shortest As String = "-shortest"
1045:      Public AnyOut As String = ""
1046:      Public Duration As Integer = 4
1047:      Public FontColor As Color = Color.Black
1048:      Public FontSize As Integer = 30
1049:      Public FontLineSpacing As Integer = 100
1050:      Public RowPerSlide As Integer = 7
1051:      Public TopGap As Integer = 100
1052:      Public LeftGap As Integer = 100
1053:      Public MaxWidth As Integer = 1920
1054:      Public MaxHeigth As Integer = 1080
1055:      Public OrderBy As String = "Name (asc)"
1056:
1057:
1058:      Private Sub TuneOutButton_Click(sender As Object, e As EventArgs) Handles TuneOutButton.Click
1059:          Dim X As New TuneOutputForm
1060:          X.ShowDialog()
1061:      End Sub
1062:
1063:      Private Sub TuneImageButton_Click(sender As Object, e As EventArgs) Handles TuneImageButton.Click
1064:          Dim X As New TuneSlideShowForm
1065:          X.ShowDialog()
1066:      End Sub
1067:
1068:      Private Sub OpenOutputButton_Click(sender As Object, e As EventArgs) Handles OpenOutputButton.Click
1069:          Process.Start("explorer.exe", OutputFolderPath)
1070:      End Sub
1071:
1072:      Private Sub ConvertJpegButton_Click(sender As Object, e As EventArgs)
1073:          Dim X As New ErrForm
1074:          X.ErrorMessage = "Sorry in this version you have to convert images folder to needed size manually" & vbCrLf &
1075:              "try to use https://www.xnview.com/en/xnview/" & vbCrLf &
1076:              "install it, than navigate Tools->Batch Processing"
1077:          X.ShowDialog()
1078:      End Sub
1079:
1080:      Private Sub Button2_Click(sender As Object, e As EventArgs)
1081:          BG2 = New BackgroundWorker
1082:          Dim TXT As String() = System.IO.File.ReadAllLines(CaptionFile)
1083:          Dim Prm2 = New With {.ImageFiles = ImageFiles, .TXT = TXT}
1084:          BG2.RunWorkerAsync(Prm2)
1085:      End Sub
1086:  End Class

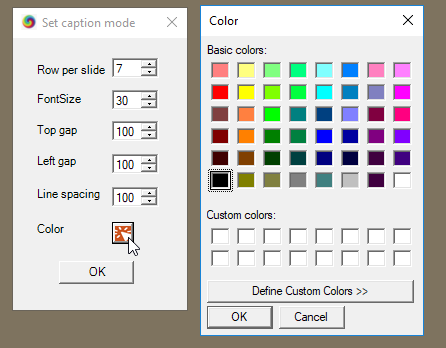

Also program has some additional window - Set caption mode, Set output video mode and Set slideshow mode. And ErrorForm with one decked Richtextbox.



   1:  Public Class TuneTxtForm
   2:
   3:      Private Sub TuneTxtForm_Load(sender As Object, e As EventArgs) Handles Me.Load
   4:          RowPerSlideNumericUpDown.Value = StartForm_Instance.RowPerSlide
   5:          FontSizeNumericUpDown.Value = StartForm_Instance.FontSize
   6:          TopGapNumericUpDown.Value = StartForm_Instance.TopGap
   7:          LineSpacingNumericUpDown.Value = StartForm_Instance.FontLineSpacing
   8:          LeftGapNumericUpDown.Value = StartForm_Instance.LeftGap
   9:      End Sub
  10:
  11:      Private Sub Button2_Click(sender As Object, e As EventArgs) Handles Button2.Click
  12:          Dim X As New ColorDialog
  13:          If X.ShowDialog() = DialogResult.OK Then
  14:              StartForm_Instance.FontColor = X.Color
  15:          End If
  16:      End Sub
  17:
  18:      Private Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
  19:          StartForm_Instance.RowPerSlide = RowPerSlideNumericUpDown.Value
  20:          StartForm_Instance.FontSize = FontSizeNumericUpDown.Value
  21:          StartForm_Instance.TopGap = TopGapNumericUpDown.Value
  22:          StartForm_Instance.LeftGap = LeftGapNumericUpDown.Value
  23:          StartForm_Instance.FontLineSpacing = LineSpacingNumericUpDown.Value
  24:          Me.Close()
  25:      End Sub
  26:
  27:  End Class


   1:  Public Class TuneOutputForm
   2:
   3:      Private Sub TuneOutputForm_Load(sender As Object, e As EventArgs) Handles Me.Load
   4:          FramerateNumericUpDown.Value = StartForm_Instance.Framerate
   5:          AnyOutTextBox.Text = StartForm_Instance.AnyOut
   6:          If StartForm_Instance.Shortest = "-shortest" Then ShortestCheckBox.Checked = True
   7:      End Sub
   8:
   9:      Private Sub LinkLabel1_LinkClicked(sender As Object, e As LinkLabelLinkClickedEventArgs) Handles LinkLabel1.LinkClicked, LinkLabel2.LinkClicked
  10:          Process.Start("C:\Program Files\Mozilla Firefox\Firefox.exe", "https://ffmpeg.org/ffmpeg.html")
  11:      End Sub
  12:
  13:      Private Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
  14:          StartForm_Instance.Framerate = FramerateNumericUpDown.Value
  15:          If ShortestCheckBox.Checked Then StartForm_Instance.Shortest = "-shortest" Else StartForm_Instance.Shortest = ""
  16:          StartForm_Instance.AnyOut = AnyOutTextBox.Text
  17:          Me.Close()
  18:      End Sub
  19:
  20:
  21:  End Class


   1:  Public Class TuneSlideShowForm
   2:
   3:
   4:      Private Sub TuneSlideShowForm_Load(sender As Object, e As EventArgs) Handles Me.Load
   5:          DurationNumericUpDown.Value = StartForm_Instance.Duration
   6:          MaxHeigthNumericUpDown.Value = StartForm_Instance.MaxHeigth
   7:          MaxWidthNumericUpDown.Value = StartForm_Instance.MaxWidth
   8:          OrderByComboBox.SelectedText = StartForm_Instance.OrderBy
   9:      End Sub
  10:
  11:      Private Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
  12:          StartForm_Instance.Duration = DurationNumericUpDown.Value
  13:          StartForm_Instance.MaxHeigth = MaxHeigthNumericUpDown.Value
  14:          StartForm_Instance.MaxWidth = MaxWidthNumericUpDown.Value
  15:          StartForm_Instance.OrderBy = OrderByComboBox.Text
  16:          Me.Close()
  17:      End Sub
  18:
  19:  End Class


   1:  Public Class ErrForm
   2:      Public Property ErrorMessage As String
   3:      Public Property RedText As New ArrayList
   4:
   5:      Private Sub ErrForm_Load(sender As Object, e As EventArgs) Handles Me.Load
   6:          RichTextBox1.Text = ErrorMessage
   7:          RichTextBox1.DeselectAll()
   8:          For Each One In RedText
   9:              RichTextBox1.Select(One(0), One(1))
  10:              RichTextBox1.SelectionColor = Color.Brown
  11:          Next
  12:          RichTextBox1.DeselectAll()
  13:      End Sub
  14:  End Class


Comments ( )
<00>  <01>  <02>  <03>  <04>  <05>  <06>  <07>  <08>  <09>  <10>  <11>  <12>  <13>  <14>  <15>  <16>  <17>  <18>  <19>  <20>  <21>  <22>  <23
Link to this page: //www.vb-net.com/SlideshowOnFFmpegMediaToolkit/index.htm
<SITEMAP>  <MVC>  <ASP>  <NET>  <DATA>  <KIOSK>  <FLEX>  <SQL>  <NOTES>  <LINUX>  <MONO>  <FREEWARE>  <DOCS>  <ENG>  <CHAT ME>  <ABOUT ME>  < THANKS ME>
