Viacheslav Eremin | Tune Docker Registry (continue)

(LINUX) LINUX (2021)

Tune Docker Registry (continue)

1. Install docker registry
2. Read image from docker.io, rename and push it to own private registry.
3. Explore Registry API - read image catalog, hash and layers.
4. Connect to Docker API with Docker.Registry.DotNet

1. Install docker registry

# sudo docker run -d -p 5000:5000 --restart always --name registry registry:2
# sudo docker ps

2. Read image from docker.io, rename and push it to own private registry.

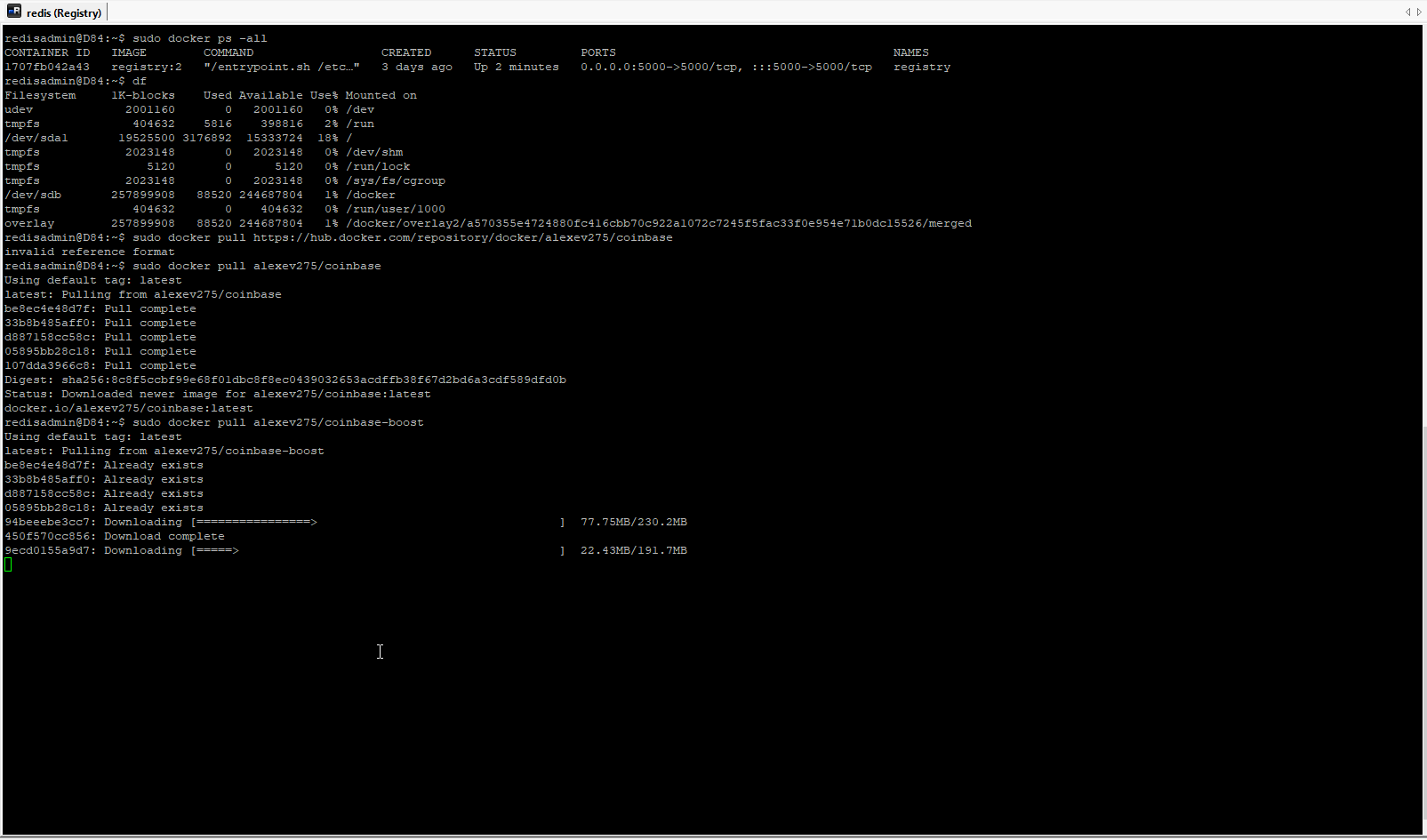

# sudo docker pull alexev275/coinbase
# sudo docker image ls -a

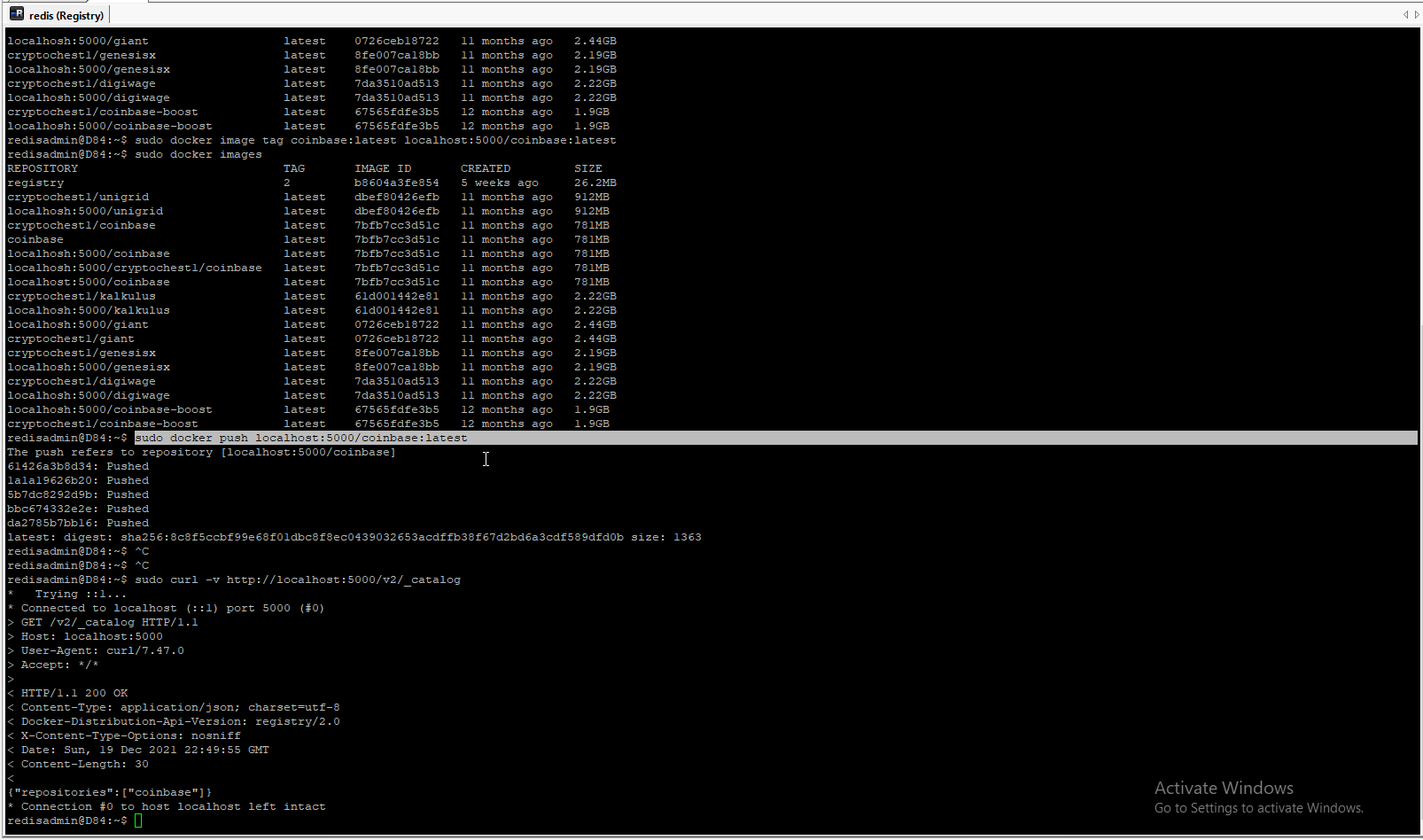

# sudo docker image tag alexev275/coinbase:latest localhost:5000/coinbase:latest
# sudo docker push localhost:5000/coinbase:latest

3. Explore Registry API - read image catalog, hash and layers.

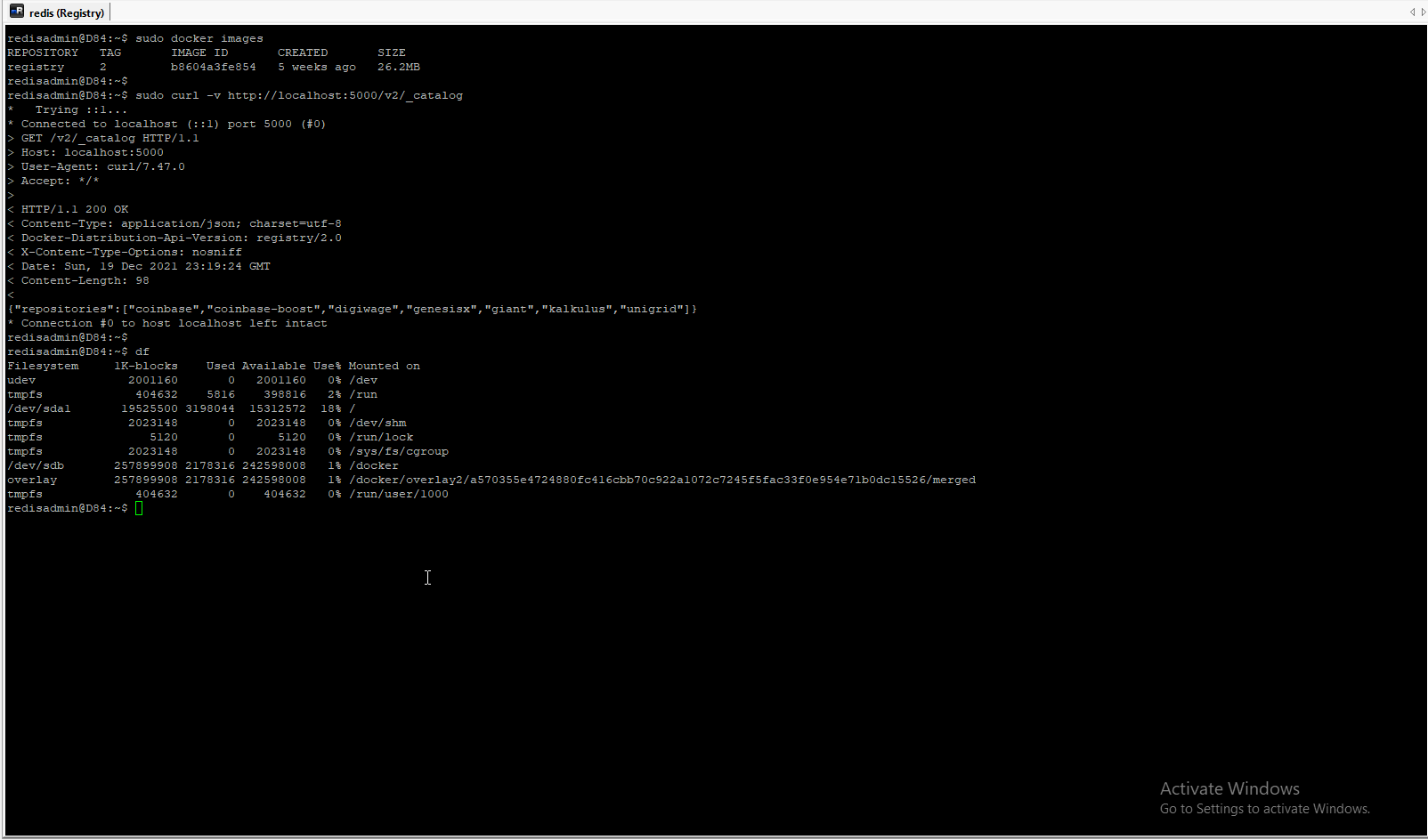

# sudo curl -v http://localhost:5000/v2/_catalog
# sudo curl -v http://localhost:5000/v2/coinbase/tags/list

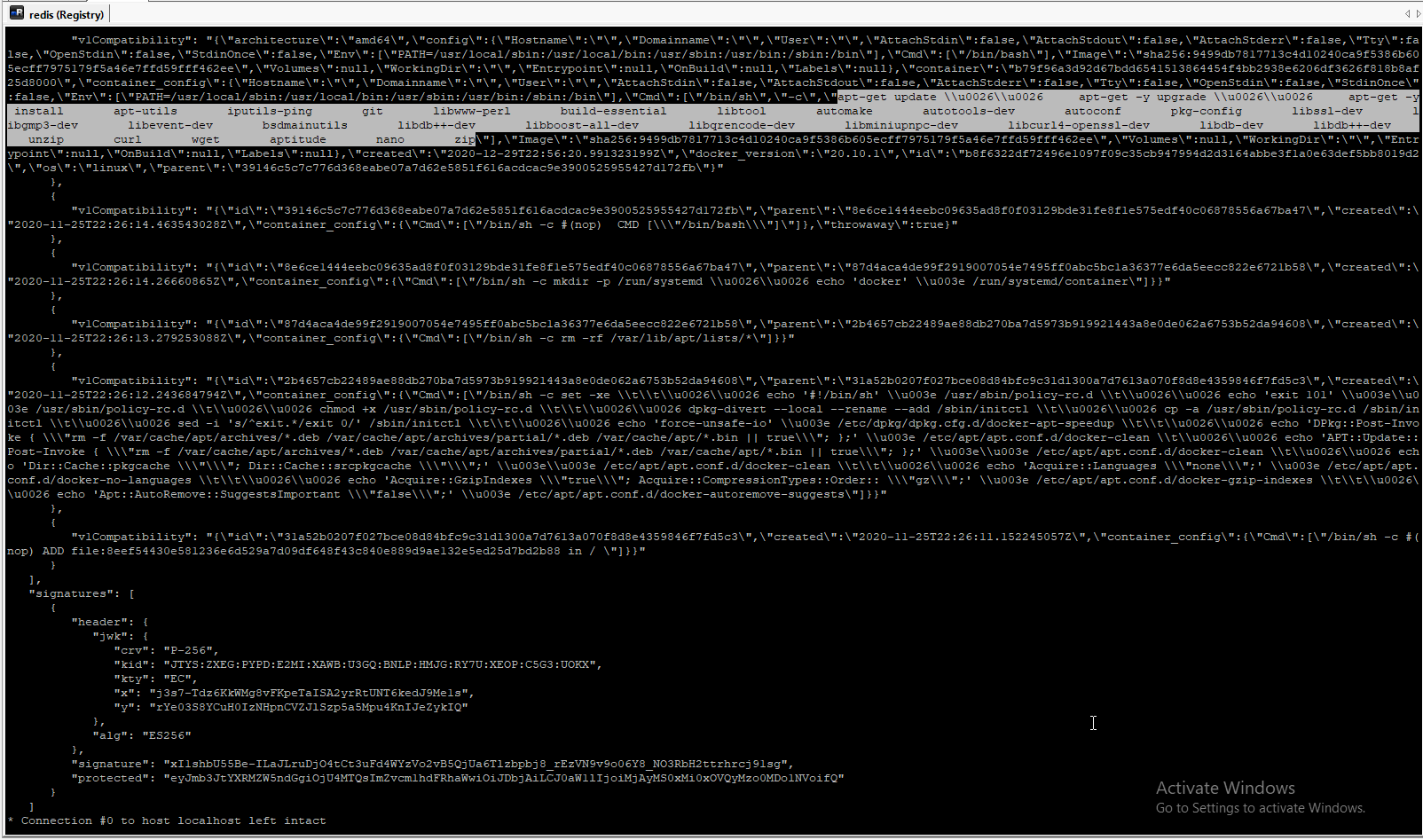

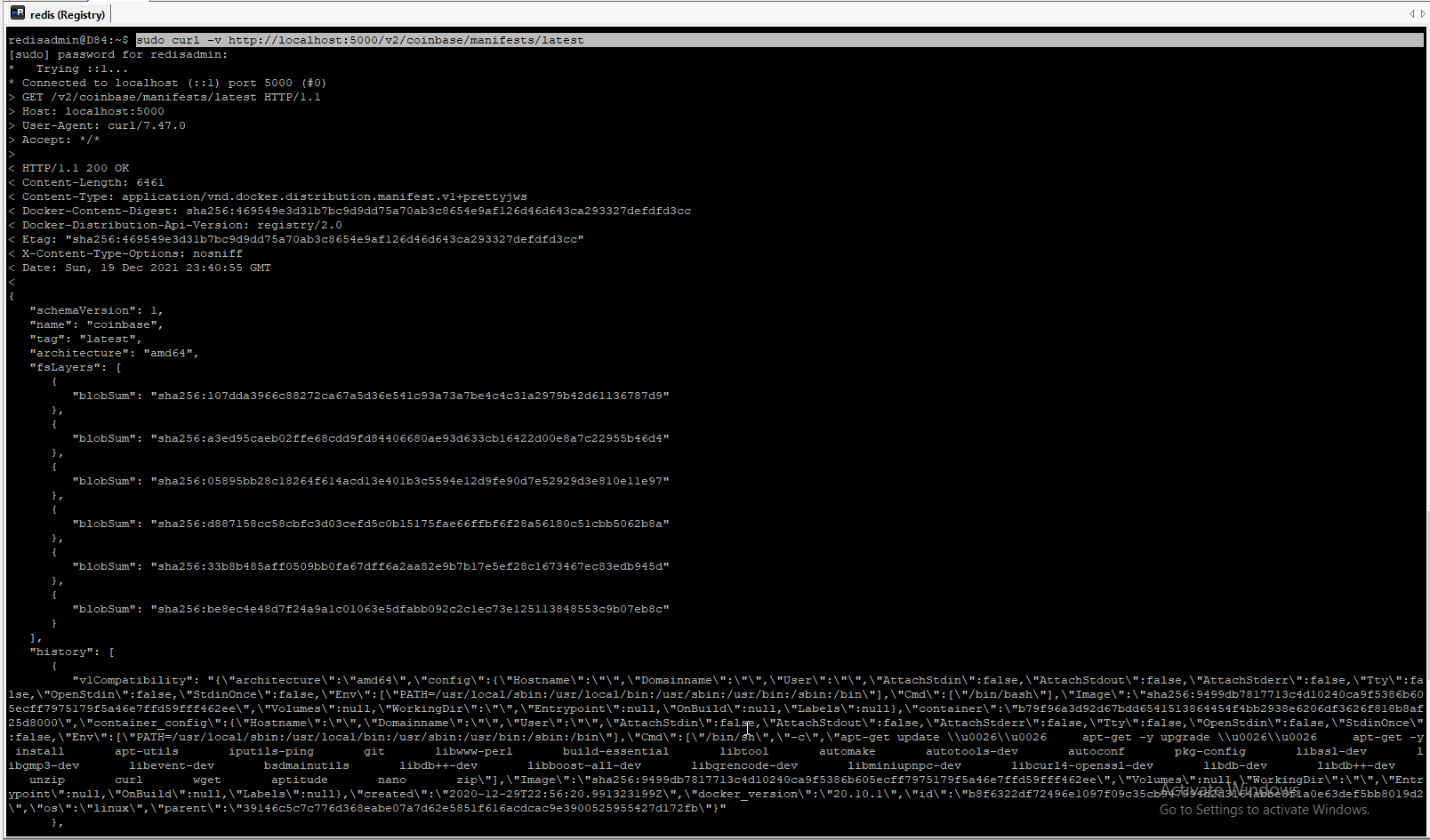

# sudo curl -v http://localhost:5000/v2/coinbase/manifests/latest

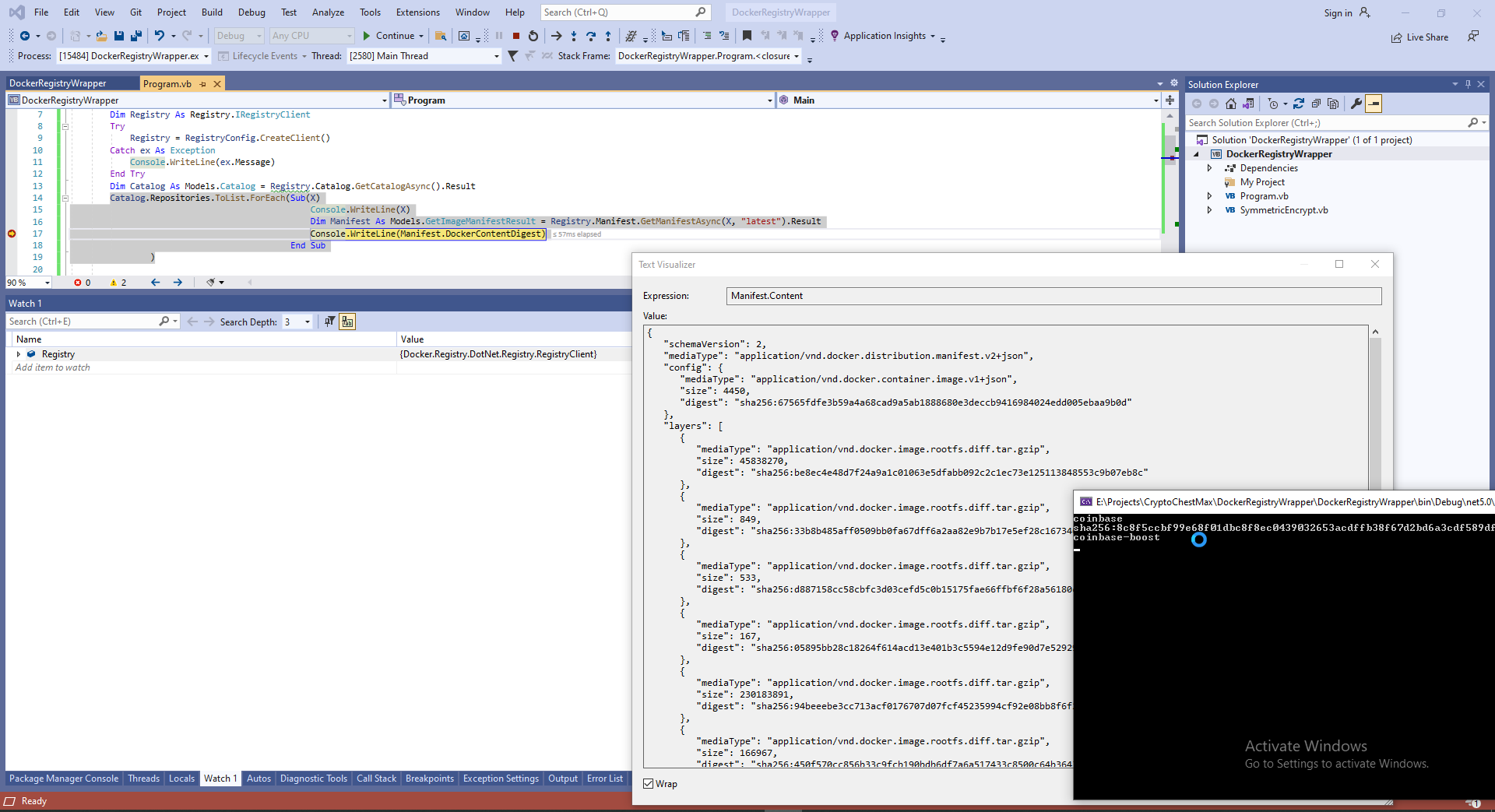

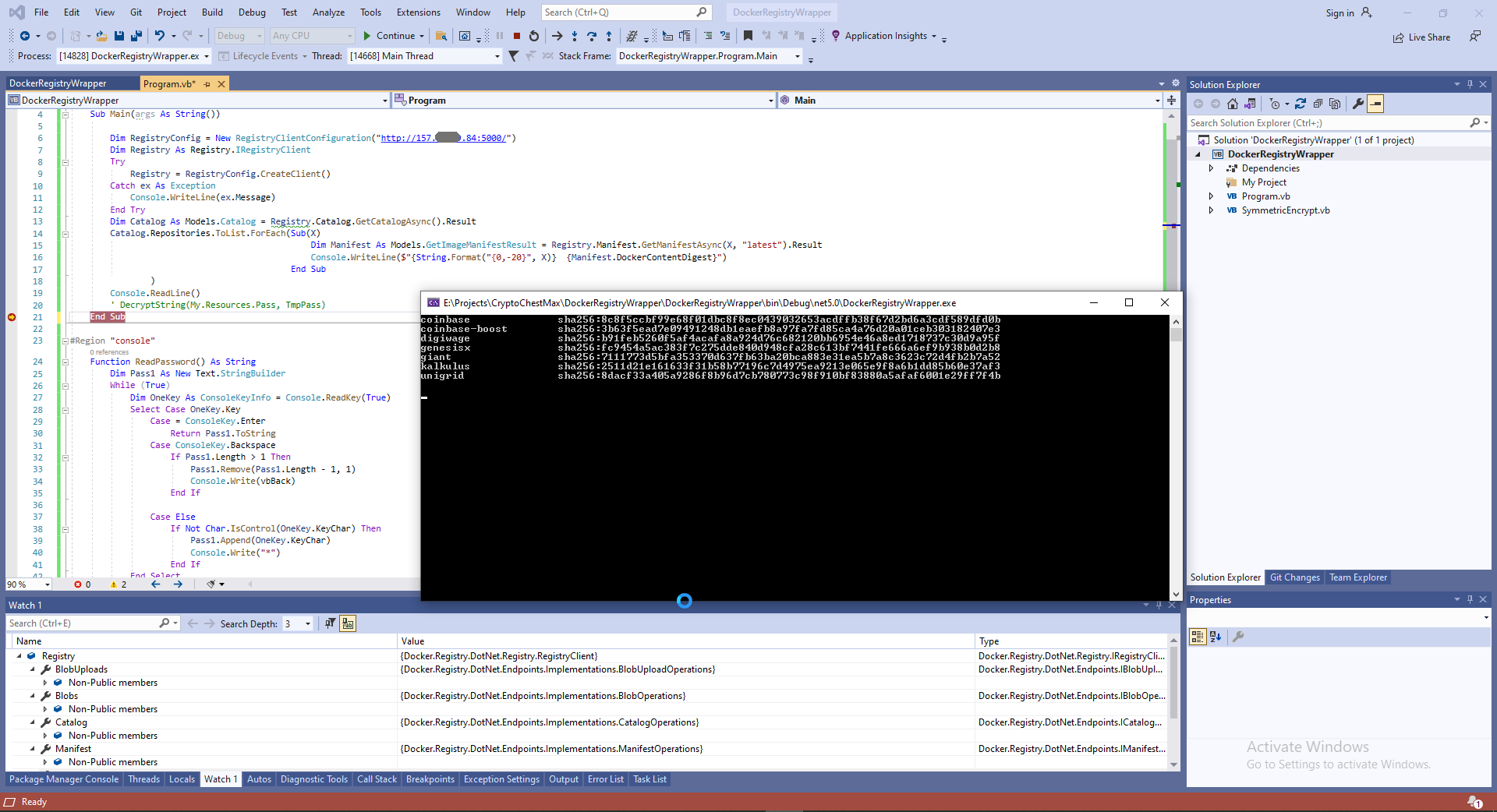

4. Connect to Docker API with Docker.Registry.DotNet

Full code uploaded to https://github.com/Alex-1347/DockerRegistryWrapper.

   1:      Sub Main(args As String())

   2:          'prepare password

   3:          'Console.Write("pass to be encrypted>")

   4:          'Dim Pass1 = Console.ReadLine

   5:          'Console.Write("encrypted string>")

   6:          'Dim Pass2 = Console.ReadLine

   7:          'Console.Write(EncryptString(Pass1, Pass2))

   8:          'End

   9:          Console.Write("Password>")

  10:          Dim RegistryConfig = New RegistryClientConfiguration(My.Resources.URL)

  11:          Dim AU As AuthenticationProvider = New PasswordOAuthAuthenticationProvider(My.Resources.Login, DecryptString(My.Resources.Pass, ReadPassword()))

  12:          Dim Registry As Registry.IRegistryClient

  13:          Try

  14:              Registry = RegistryConfig.CreateClient(AU)

  15:          Catch ex As Exception

  16:              Console.WriteLine(ex.Message)

  17:          End Try

  18:          Dim Catalog As Models.Catalog = Registry.Catalog.GetCatalogAsync().Result

  19:          Catalog.Repositories.ToList.ForEach(Sub(X)

  20:                                                  Dim Manifest As Models.GetImageManifestResult = Registry.Manifest.GetManifestAsync(X, "latest").Result

  21:                                                  Console.WriteLine($"{String.Format("{0,-20}", X)}  {Manifest.DockerContentDigest}")

  22:                                              End Sub

  23:                  )

  24:          Console.ReadLine()

  25:      End Sub

5. Continue reading - Protect Docker Registry by Nginx.
